DQ500-(0BH325025PZ3T)

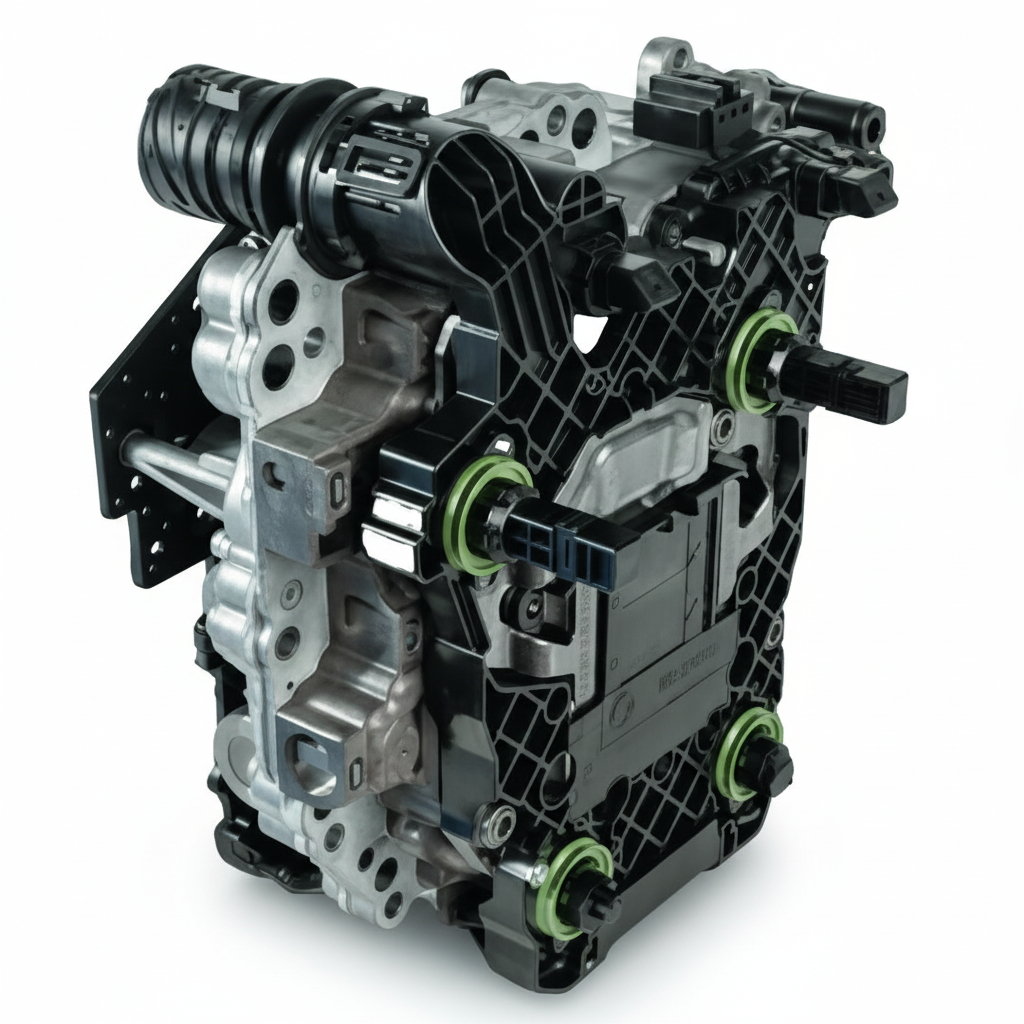

The 0BH 325 025 P Z3T is a genuine Volkswagen Group DSG mechatronic control unit for the 7-speed wet-clutch DSG (DQ500) transmission. It combines the electronic control module with the hydraulic valve body used in the transmission to manage gear shifts and clutch actuation. This unit is supplied pre-programmed to a specific vehicle VIN and must be ordered using that VIN to ensure correct calibration and fitment.
$0.00
Typical vehicle applications
This part fits VW Group vehicles equipped with the DQ500 7-speed DSG wet-clutch gearbox, especially in all-wheel-drive configurations (4Motion/quattro). Common applications include:
-
Audi models with DSG DQ500 gearboxes
-
Volkswagen AWD/4Motion vehicles (e.g., Tiguan, Golf R, Transporter/Multivan with DQ500)
-
Škoda AWD models with DQ500
-
SEAT AWD/4Drive models
Exact compatibility should always be verified with the vehicle’s VIN.
Common fault codes
These are typical DSG transmission control/pressure faults seen when a mechatronic unit is failing (general DQ500 patterns):
-
P17BF – Hydraulic pressure build-up slow or insufficient
-
P0841 – Transmission pressure sensor implausible signal
-
P17D4 / P17D5 – Clutch adaptation limits reached
-
U0101 – Lost communication with transmission control module
-
P0607 – Control module performance fault
These codes often point to hydraulic control issues, sensor failures, or internal electronic faults in the mechatronic assembly.
Typical symptoms
-
Flashing PRNDS or transmission warning lights
-
Harsh, delayed, or erratic gear changes
-
Limp mode activation
-
Loss of drive or reverse gears
-
Gear selection faults
| Weight | 1200 kg |
|---|
